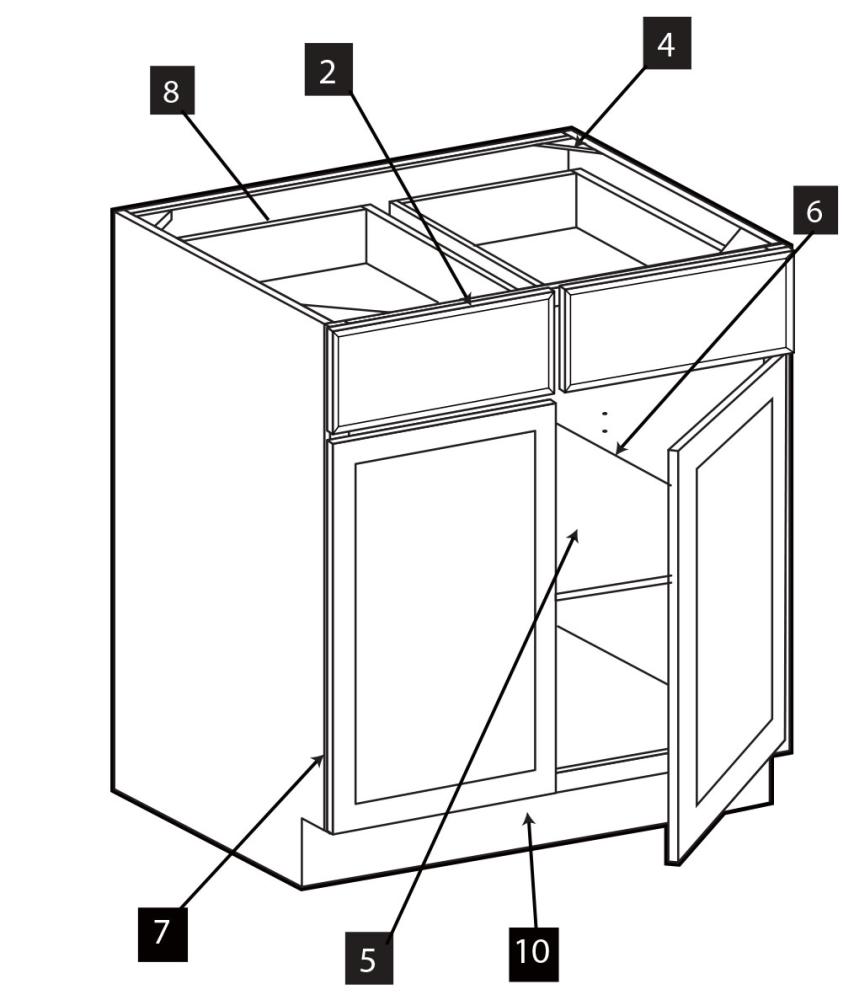

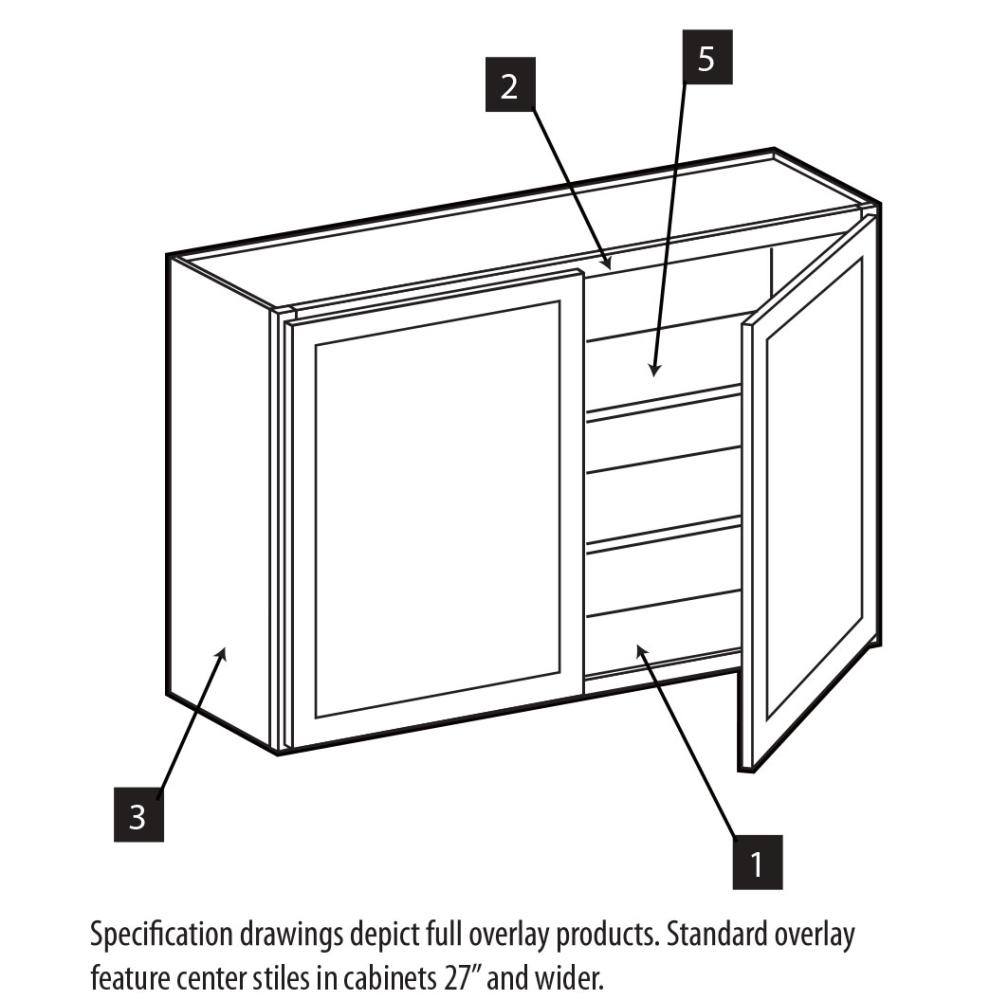

Cabinet Construction
| ID |
PART |
DESCRIPTION |
|
| 1 |
Interior |
1/2" birch plywood with a natural UV finish |
1/2" furniture core vinyl wrapped board |
| 2 |
Face Frame |
3/4" solid hardwood doweled and joint glued |
|
| 3 |
End Panels |
1/2" plywood natural VU finish |
1/2" furniture core vinyl wrapped board |
| 4 |
Corner Supports |
4 pcs corner braces provide stability and support for countertop attachement |
|
| 5 |
Shelves |
3/4" adjustable plywood natural finish with matching edgebanding (Base shelves are full depth) |
|
| 6 |
Shelf Supports |
5mm metal spoon shelf pins |
|
| 7 |
Hinges |
Fully concealed, 110 degree opening featuring multiple adjustments for ease of alignment |
|
| 8 |
Runners/Glides |
Full-extension soft-close undermount guides with 100 lb capacity |
3/4 extension undermount guides with 75 lb capacity |
| 9 |

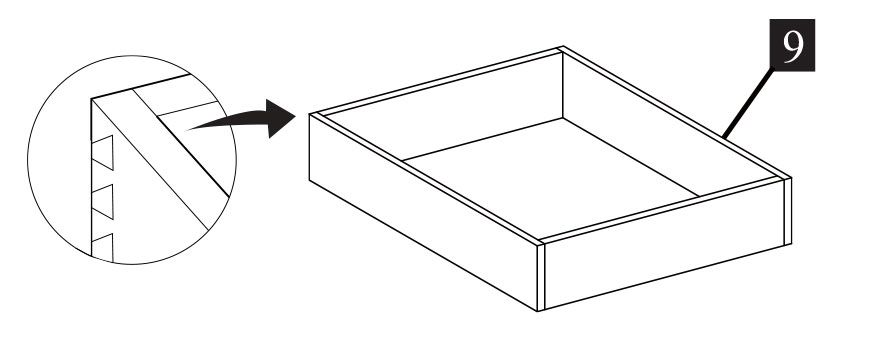

Drawers & Roll-Out Trays |
5/8" solid hardwood, four-sided dovetail with 5/16" captured plywood floor, all finished natural to coordinate with cabinet interior |
|
| 10 |
Toe Kick |
1/2" plywood secured between end panels (Provides solid backing for installation of matching toe tick or other materials such as ceramic, vinyl, etc.) |
|
